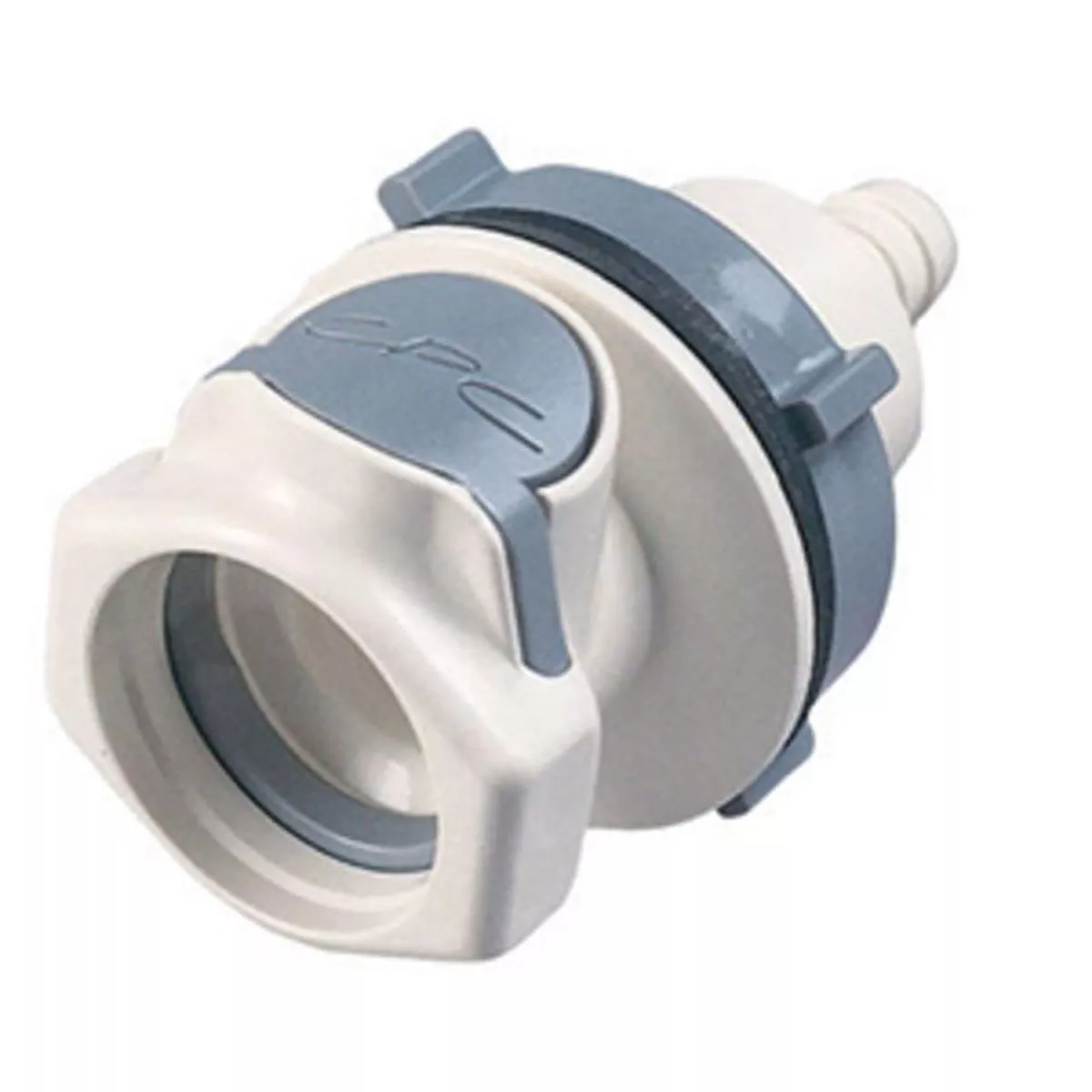

Patented HFC12 Series couplings have flow comparable to many 1/2″ flow couplings in a 3/8″ body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and low spillage. NSF-listed versions are sutiable for use in water and beverage lines or food and condiment dispensing.
Specifications:
- Material: Polysulfone
- Material Finish: Molded White
- Color: Gray
- Valve Option: Valved
- Mounting Option: Panel Mount
- Pressure Range: Vacuum to 125 psi, 8.6 bar
- Temperature Range: -40F to 280F
- Seal Options: FDA EPDM
- Valve Spring: 316 Stainless Steel
