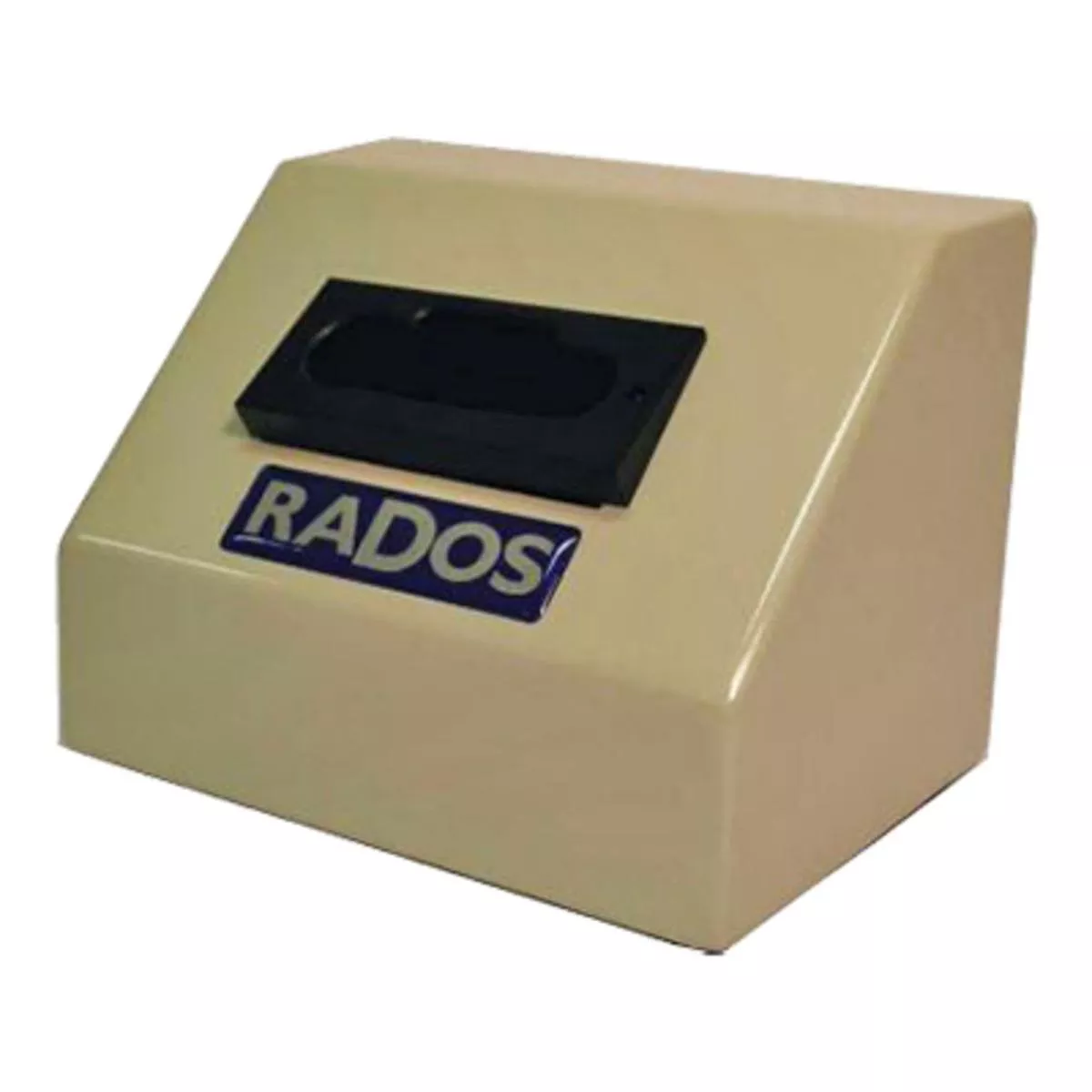

The ADR-1 Reader Head is designed to read and manage RAD-50 and RAD-60 Series Electronic Dosimeters in modern PC environments.
Includes: ADR-1 Reader, configuration software and manualADR-1/60 Reader Head Capabilities:
- Change dosimeter settings, perform calibration
- Assign dosimeters, user IDs and names
- Connects to any PC via 9 pin serial port
- RS-232 cable and universal input w/DC power supply
- Desktop or wall mount
- Indicator LED for dosimeter communication
Specifications:
- Dimensions: (HxDxW) 4.5″ x 4.5″ x 5.9″
- Weight: 4.2 lb
- Power supply + 12 VDC, max. 200 mA
- Operating temperature: 0 C to +40C (from +32F to +104F)
- Storage temperature: 10C to +60C (from +14F to +140F)
- Operating humidity: 90% RH (non-condensing)
