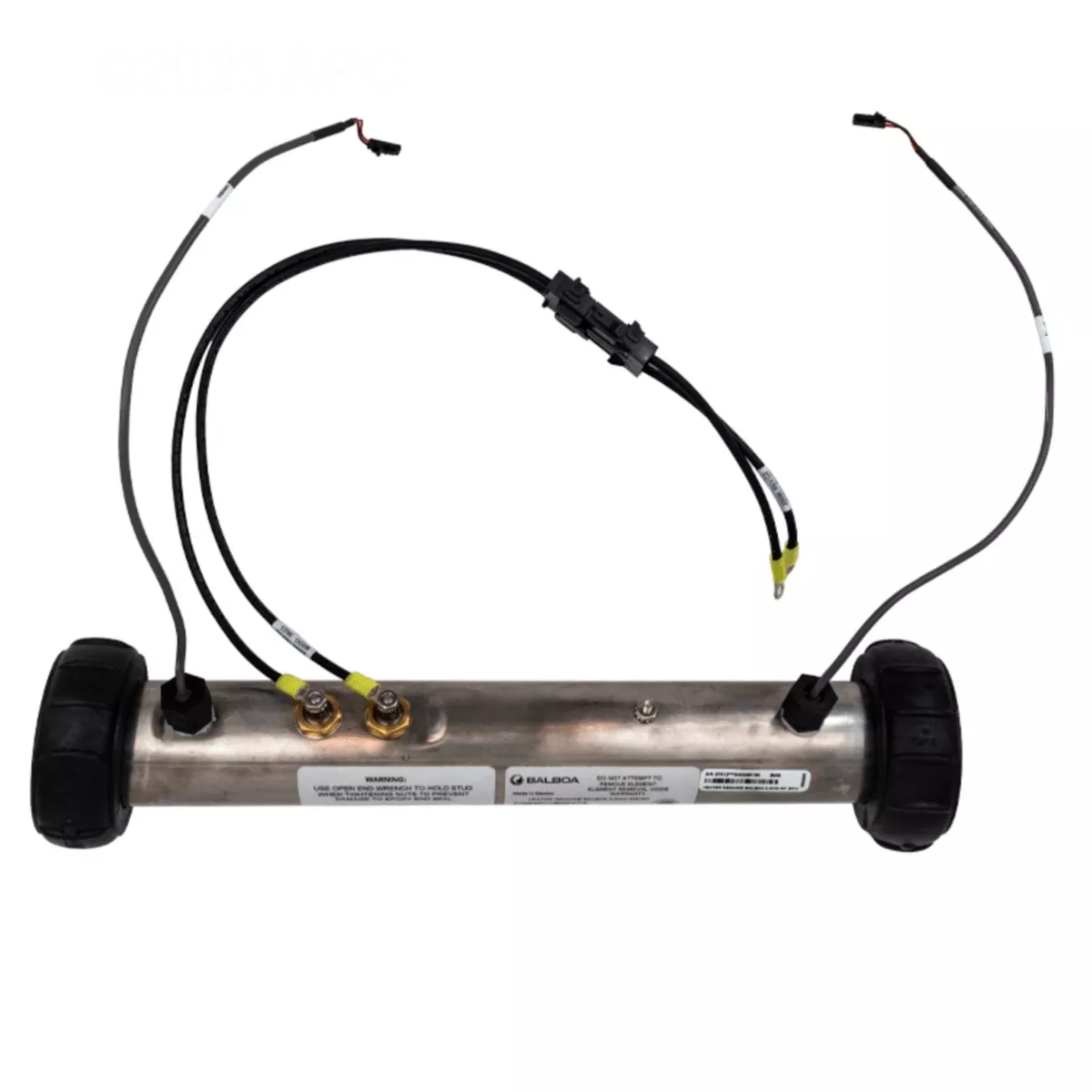

OEM Balboa Spa Heater – M7 15″ 5.5 kw Flo-Thru with Mounting Studs & Sensors
- Stainless Steel Heater Housing
- 5.5KW Incoloy Flo-Thru Heater Element
- Includes (2) Balboa OEM M7 Dual Sensors (Balboa p/n 32016)
- BP Style Heater Cable Plug, Plug N’ Click, 16″ Long (Balboa p/n 25263)
- Includes (2) 2.0″ Heater Split Nut Unions
- One Year Warranty
- Replaces ALL Current Versions (BP) And Previous VS and EL Series Heaters
Specifications:
- Voltage: 120v / 230v
- KW Rating: 5.5kw
- Plumbing Connection Size: 2″ Slip
- Length: 15″ (Metal Flange to Metal Flange)
- Construction: Stainless Steel
- Element Construction: Incoloy
- Includes Sensors & Mounting Posts
- Split Nut Unions Included
- “Plug n Click” Connector Included (Can be Removed)
- This heater does NOT include gaskets or plumbing Tailpieces
Support Documents:
- BP Installation Guide
- VS Installation Guide
Can Replace the Following Heater Models:
- 58083,58002,55689,58123,58209,HEA14100450,58121,58016,C2550-0807-TPS,58083,55473,9711-220,58105,11787,407-40557,58086,740-0617,55624,58089,740-0655,58083,58140,26-0807-7S-KS,G7510,G7518,58000,58010,58130,9711-207,52756,X300930 (Master Spa),55629,58278,55690,G7512,26-58306-KH
Alternate Part Numbers:
- BBG7512, G7510, BBG7510, 9711-220, 46-138-1315
Notes For Use on Balboa VS Systems:
- This heater is a replacement for ALL BP, VS, and EL Balboa 5.5kw / 15″ Heaters.
- If using to replace on a VS system, you will need to remove the included Pick-n Click Plug that is attached, and replace with heater cables, or existing wiring. (See VS installation guide above)
- If your current system uses copper straps to power the heater, it is recommended to replace with heater cables/wires.
