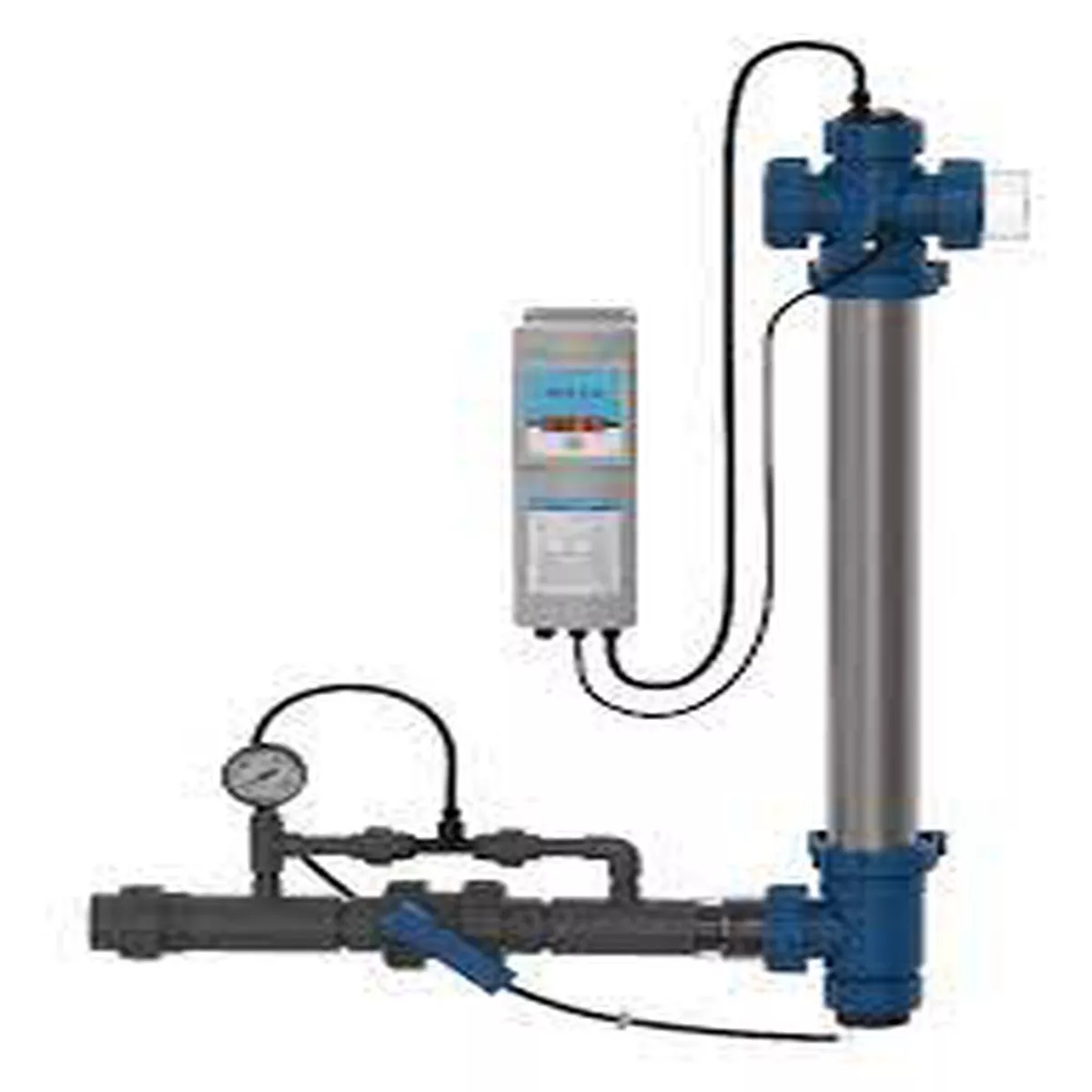

Certikin Blue lagoon 75W AOP Compact Ozone UV-C Lamp SPBUV033
The combination of ozone and UV-C, integrated in this smart designed purifier,
ensures fresh and healthy pool water with the possibility of using a minimum
use of chlorine.
Advantages of the Blue LagoonAOP Compact Ozone & UV-C :
A built-in electronic ballast to ensure a smooth power supply
Up to 35% more UV-C yield as a result of reflection
100% effective en constant operation
316L Stainless steel housing
The ozone UV-C lamp produces ozone for 4.500hours and produces UV-C for 9.000 hours
The device will indicate when the lamp needs replacing
Easy installation and maintenance
Made in the Netherlands
Operation :
This revolutionary combination of ozone and UV-Cmakes a pool with a minimal amount of chlorinepossible!
With this Blue Lagoon AOP Compact Ozone& UV-C unit on your pool system you’re able to keepyour pool water fresh, crystal clear and especiallyhygienic clean.
This device is able to reduce thechlorine concentration up to 50-80%! You connectthe Blue Lagoon AOP Compact Ozone & UV-C onto your swimming pool system.
Using a pump, thewater is pumped into the unit through the suppliedreactor. Because of the water pressure in the reactor,air is sucked through the Venturi system. Air is suckedinto the unit via the air valve and flows through thearea between the quartz glass and the AOP CompactOzone & UV-C lamp. The lamp has a double function,producing ozone and UV-C light at the same time.Because air enters the unit via the lamp, ozone isgenerated by the special AOP Compact Ozone & UV-Clamp, which produces 0.6 grams of ozone. After it haspassed the ball valve, the ozone enriched air is thenmixed with water in the system. The oxidation andsterilisation take place here, and a powerful disinfectionprocess is achieved. The water-ozone mixture isthen exposed to the UV-C radiation of the lamp.
TheUV-C breaks down the remaining ozone in the water,changing it into OH- (Hydroxyl radicals) which have avery high oxidation potential. Connections: 63mm/ 50mm / 1 “. Please notice the correct grounding! What is AOP?The Advanced Oxidation Process (AOP) combines thebenefits of ozone and UV-C into one device.
Whenozone is used in combination with UV-C light in water,hydroxyl radicals (OH-) are created. These radicals arevery effective against chlorine immune microorganisms(like Legionella bacteria and Cryptosporidium), organicpollutants and cleaning byproducts such as chloramines,responsible for eye and skin irritation and the typicalchlorine smell. Because UV-C light will destroy theresidual ozone in the water, there is no deozonationdevice needed. AOP is a very effective and efficient wayof sanitisingand disinfecting your pool. Because of thatthe amount of chlorine in a pool can kept to a minimum.
Benefits AOP:
Strong combination of ozone (oxidation) andUV-C (disinfection)
Improves the disinfection efficiency
Makes a pool with a minimal amount of chlorine possible
Effective against chlorine-resistant microorganisms
Prevents skin and eye irritation
Can be quickly added to existing filtration systems
NOTE : This is only a replacement bulb.
