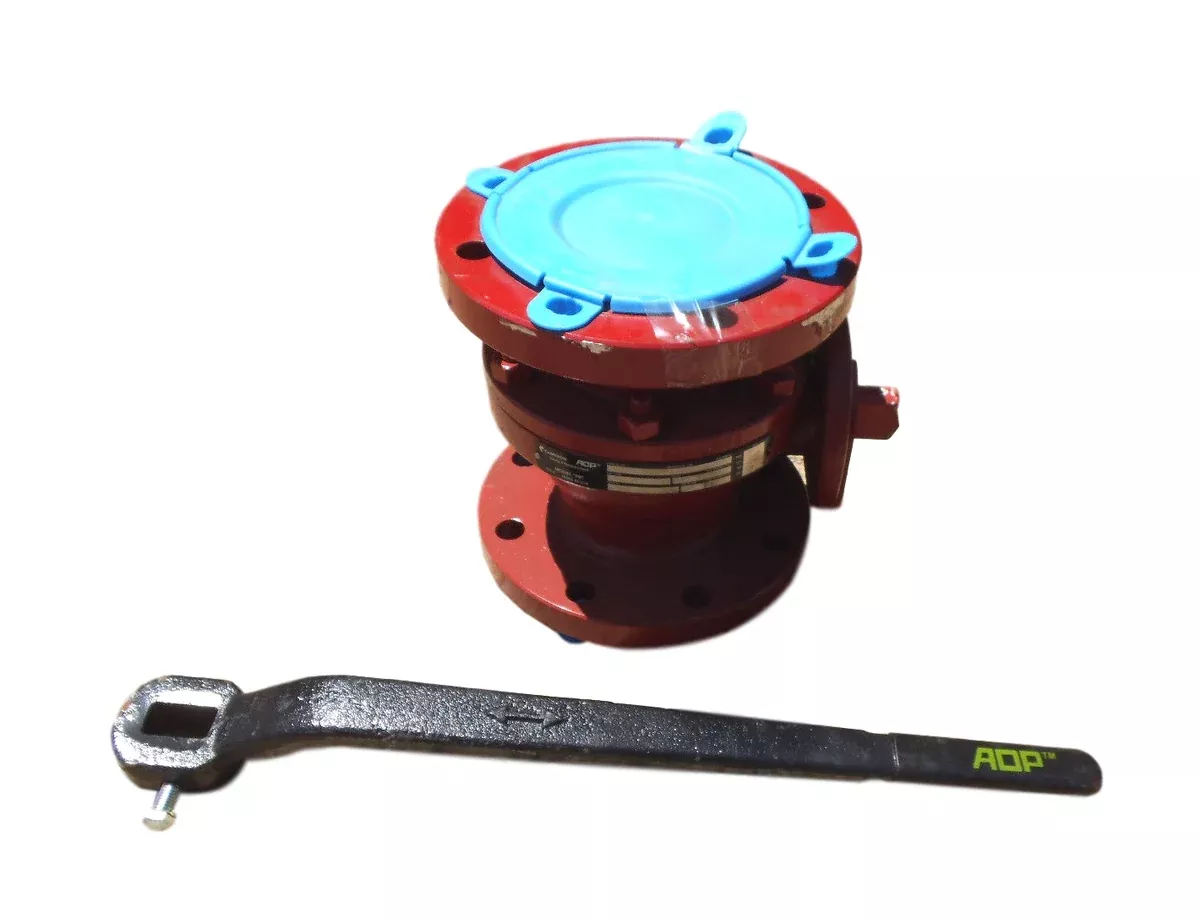

The FB Series is a cast body, side entry, floating ball valve. The two-piece body and bolted construction allow disassembly on the jobsite for easy service and repair. FB Series valves are available in sizes 1” through 10” reduced port ANSI classes 150/300, 1″ through 6″ reduced port ANSI class 600, 1″ through 3″ reduced port ANSI 900/1500 classes. Valves are available with a lever handle, gear operator, or bare stem for actuation. Stem extensions and special coatings are available direct from the factory for buried service applications.
Standard Features:
- Floating ball
- Back seated and positively retained stem – cannot be removed with
- the valve in service
- Stem lube fitting and weather seal
- Standard locking handle and actuator mounting pad
- Plated carbon steel trim or stainless steel trim available
- Standard RTFE seats
- Fire tested API 607
Item Specifics:
- 4″ x 3″
- Class 150
- CWP: 285 @ 100F
- Service: SOUR
- Manufacturer code: 2005
- MOP 285/-20
- Valve handle included
