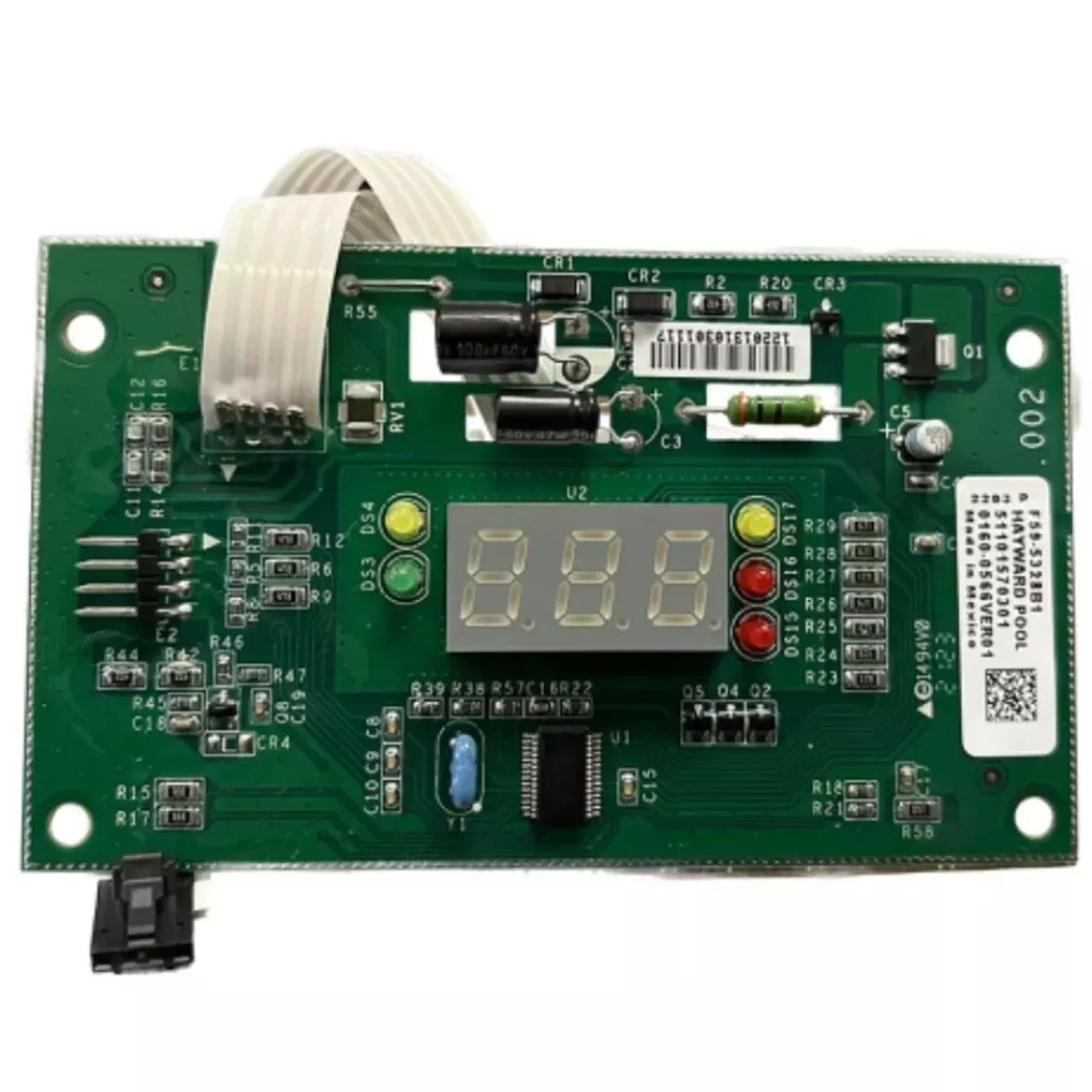

DISPLAY BOARD AND RIBBON CABLE | HDXFUIBRD001
Hayward Display Board and Ribbon Cable (HDXFUIBRD001) is an interface component for Hayward HDF series pool heaters, providing control and monitoring functions for heater operation. It connects the user control panel with the internal electronics to display information and receive inputs.
- User Interface Display:
The display board shows essential information such as temperature settings, operational status, and error codes, making it easier for users to monitor and control the heater. - Signal Transmission via Ribbon Cable:
The ribbon cable connects the display board to the main control board, transmitting data and commands between the two components for seamless operation. - Control Input:
Buttons or touch controls on the board allow users to adjust settings, such as temperature and modes of operation. - Error Detection and Diagnostics:
Error messages displayed help in identifying malfunctions or maintenance needs quickly.
