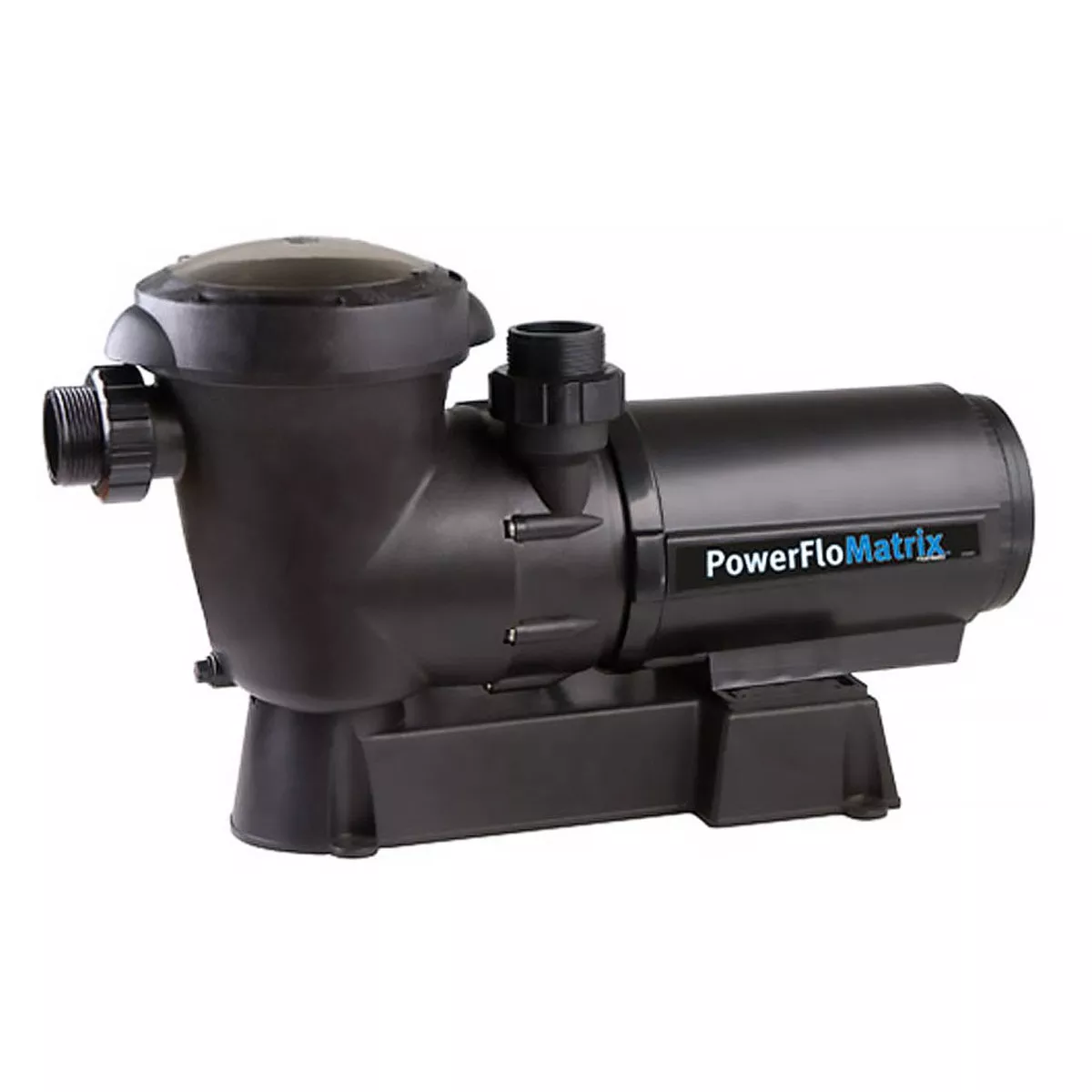

The Hayward Power-Flo Matrix Pool Pump 1.5HP SP56152 is a self priming above ground pool pump that features 2 speeds with programable electronic timer and runs on 115 volts. The pumps discharge can be rotated from the standard vertical position to horizontal position if required. The non-conductive, corrosion resistant motor housing provides protection from the elements and insulates the electrical motor parts from outside contact.
Details:
- Hayward P/N SP56152
- 2 Speed programable
- Includes cord with standard nema wall plug
- 115 Volts
- Discharge can be rotated from vertical to horizontal
Electronic timer operation:
The integrated timer is designed to be programmed to your pools filtration needs with 4 possible settings.
Setting the timer:
When the pump is switched from position off to program a beep sound is heard. This allows the pump to differentiate between settings
- Move switch from off to program to off produces 1 beep
- Move switch from off to run
- Repeat above 2 steps accordingly to your choice of setting
Programable settings:
- Setting 1 – Pump runs on high 24 hours continuously – (1 beep)
- Setting 2 – Pump runs on high 18 hours and on low for 6 hours -(2 beeps)
- Setting 3 – Pump runs on high 12 hours and on low for 12 hours – (3 beeps)
- Setting 4 – Pump runs on high 6 hours and on low for 18 hours – (4 beeps)
