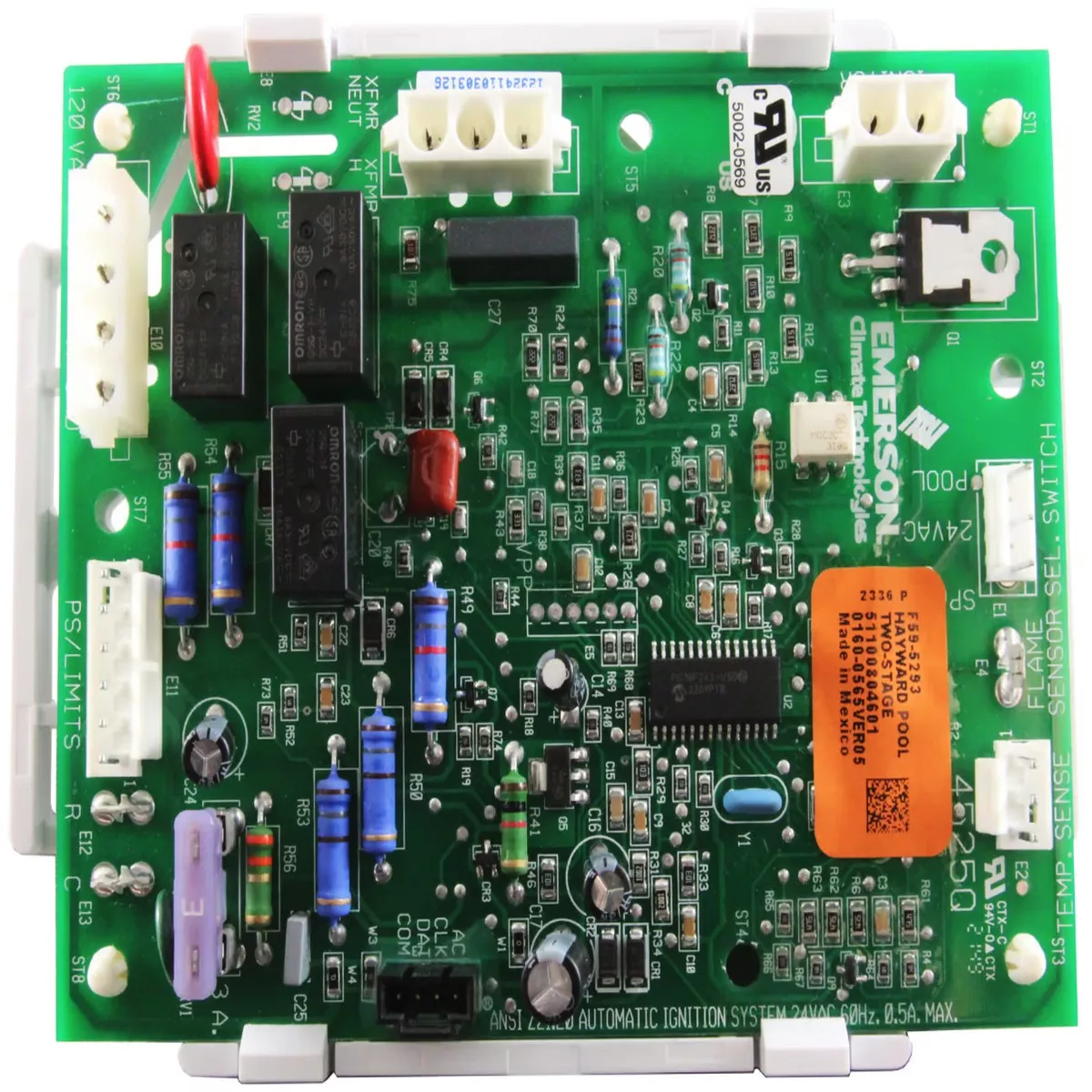

IGNITION CONTROL BOARD | HDXFICBRD001
Hayward Ignition Control Board (HDXFICBRD001) is a critical component in the ignition system of Hayward HDF pool heaters. It manages the sequence of operations needed to ignite the burner safely and maintain a consistent flame for heating.
- Ignition Sequence Management:
The board controls the startup sequence, including sending power to the igniter and opening the gas valve when conditions are safe for ignition. - Flame Detection:
It monitors the burner flame to ensure proper combustion. If no flame is detected, it shuts off the gas supply to prevent unsafe conditions. - Safety Shutdowns:
If the board detects any fault or failure, such as a flame outage or ignition failure, it automatically shuts down the system to protect against gas leaks or overheating. - Diagnostic Feedback:
Some ignition boards feature diagnostic LEDs or error codes to help identify issues quickly for troubleshooting and repair.
