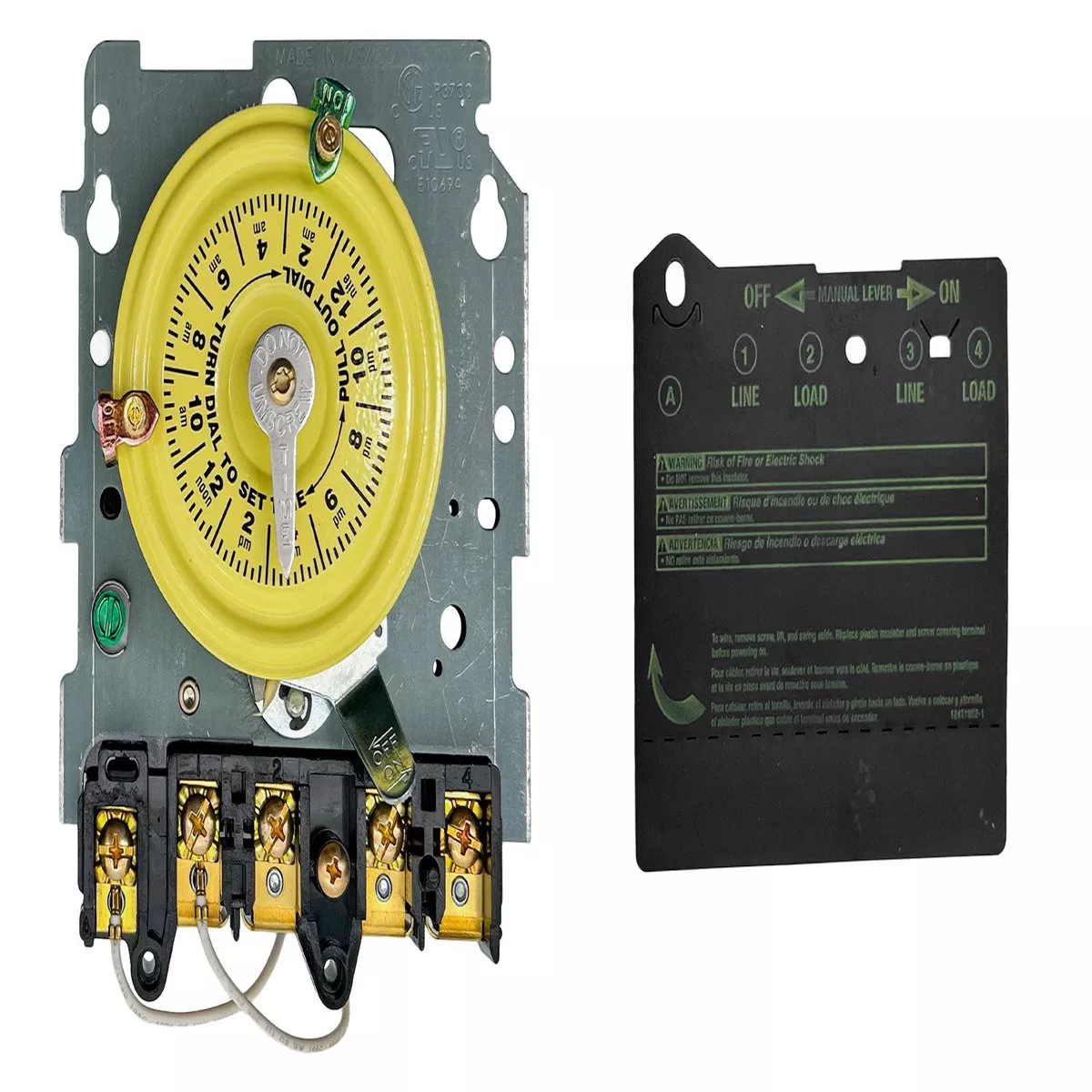

Intermatic 24-Hour 120V Mechanical Time Switch, DPST, Mechanism Only | T103M
Heavy-duty mechanical time switches to control a single load.
Features:
- Highest motor load ratings in the industry
- 12 ON/OFF operations per day
- One ON and one OFF tripper included
- Can be installed in most Intermatic enclosures
- Teeter-type terminals for multiple load connections
Specifications:
- Minimum ON/OFF Times – 1 Hour
- Maximum ON/OFF Operations – 12
- Has Manual Override
- Mechanism Only
- Input Voltage Range – 120V, 60Hz
- Number of Circuits – 1
- Switch Type – DPST
- Maximum Power Consumption – 3W
Applications:
- Indoor Lighting Control
- Timing/Scheduling ON/OFF
