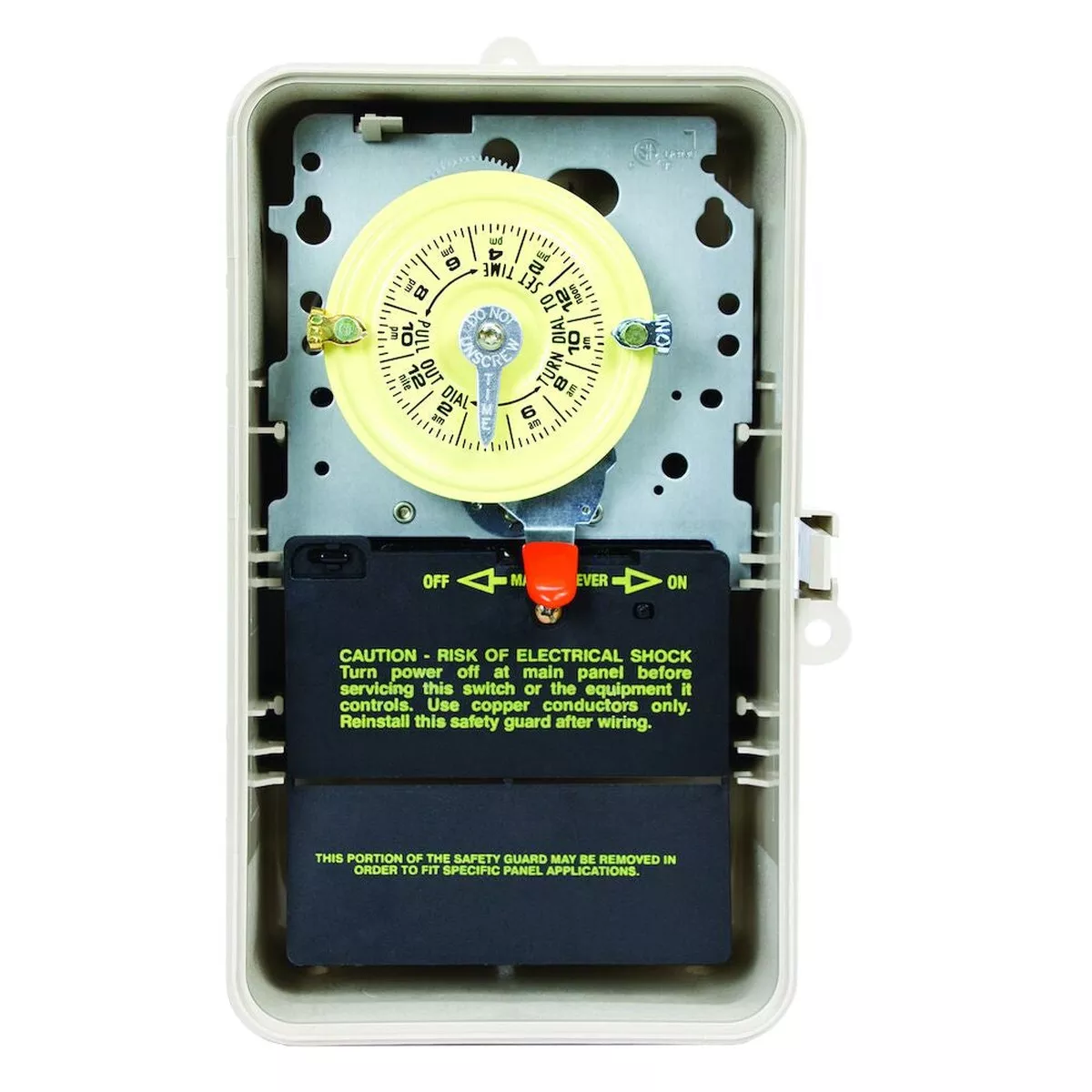

Intermatic 24-Hour 120V Mechanical Time Switch, SPST, Type 3R Plastic Enclosure | T101P3
Heavy-duty mechanical time switches to control a single load.
Features:
- Highest motor load ratings in the industry
- 12 ON/OFF operations per day
- One ON and one OFF tripper included
- Teeter-type terminals for multiple load connections
Specifications:
- Switch Type – SPST
- Input Voltage – 120V, 60Hz
- Electronic Ballast – 16A, 120V
- Maximum ON/OFF Operations – 12
- Operation Mode – 24 Hour
- Maximum Power Consumption (W) – 3W
- Number of Circuits – 1
Applications:
- Heater Thermostat Control
- Motor Control
- Pump Control
