This Laing E10 hot tub circulation pump is an updated model that replaces all the older models including the SM-909 and SM-1212 series that were red and blue on the back part and rated for 115 volts with 3/4″ barb hose connections. When replacing an older Laing pump with a current generation always compare the volts and the hose connection size to ensure the replacement has the same volt and hose connection size.
Pump details:
- Pipe Connections: 3/4″ Hose Barb Suction and Discharge
- 115 Volts, 62 Watts, 50/60 Hz, 3100 RPM
- Integrated thermoplastic pump bracket can be mounted at 4 different discharge angles.
- Maximum Capacity: 12 GPM
- Maximum Head: 18 feet
- Maximum Temperature: 140 degrees F.
- Automatic overload protection on motor.
- Whisper quiet at less than 40 db.
- Pump can be mounted horizontally or vertically with motor end down.
- Comes with 3′ cord but no plug on the cord

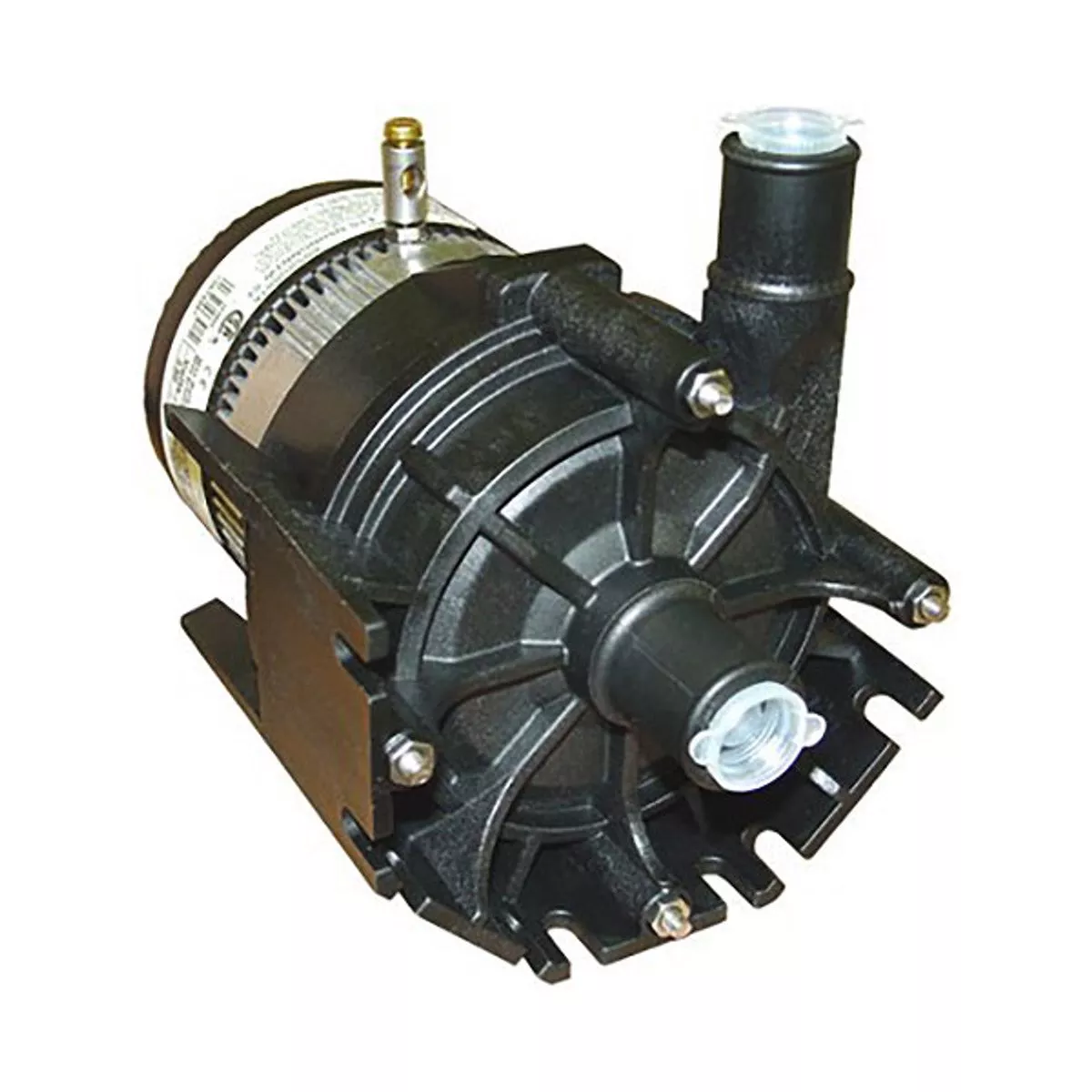

- Picture shows current generation style
- Only for use in hot tubs
Replaces older 3/4″ Barbed 115V models:
- SM-909-NHW-14-3/4″ 115V,
- SM-909-NH-14-3/4″ 115V,
- SM-909-NHW-18-3/4″ 115V,
- SM-909-NH-18-3/4″ 115V,
- SM-909-NHW-26-3/4″ 115V,
- SM-909-NH-26-3/4″ 115V,
- SM-1212-NHW-26-3/4″ 115V,
- SM-1212-NH-26-3/4″ 115V
