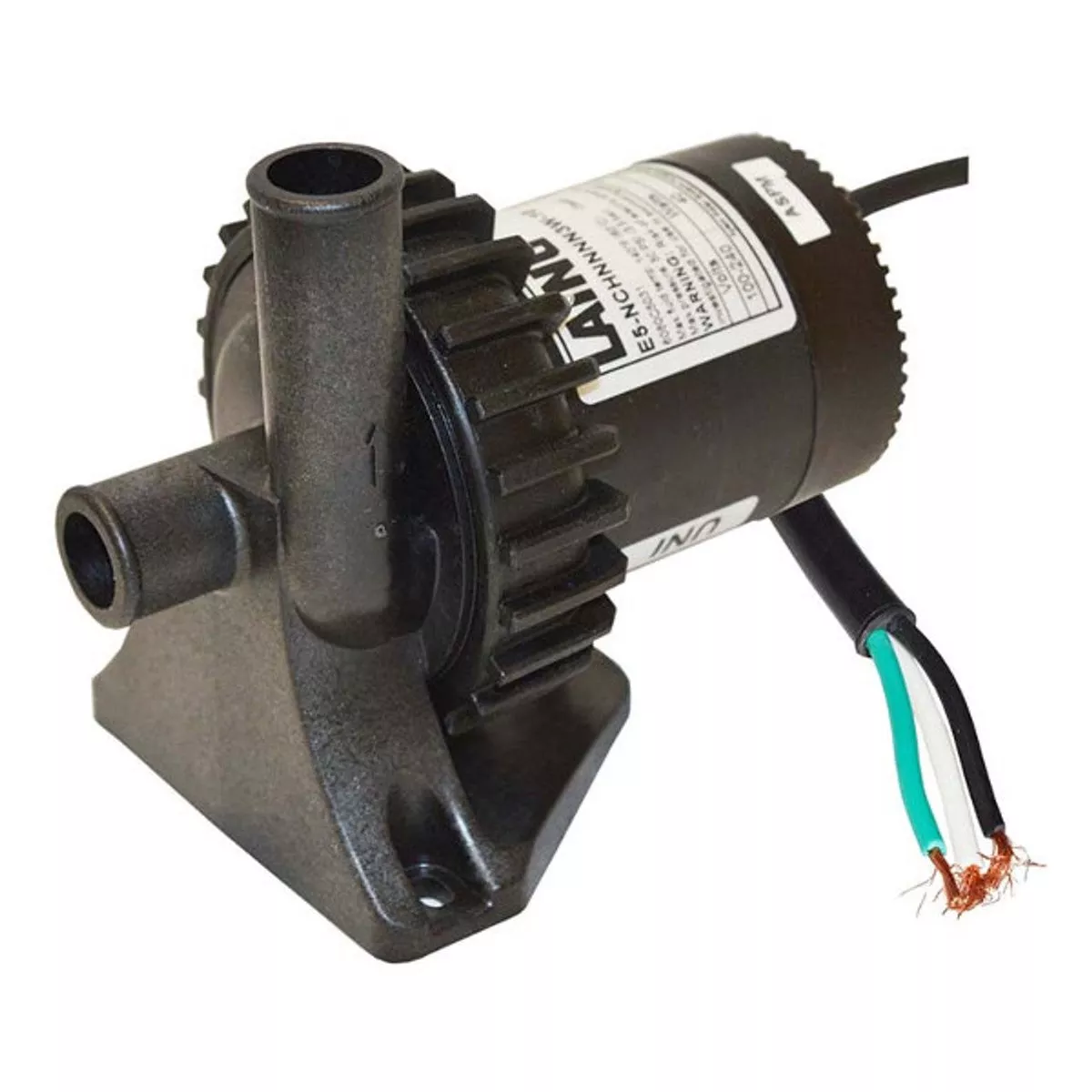

The Laing E5 pump replaces single speed circulation pumps on Hot Spring and Tiger River Models (1986-2009), Caldera, Watkins that have the double barrel heater. It can be mounted horizontally or vertically, and also replaces the SilentFlo 5000. The suction is 1-11/16″ from the bottom of the pump and the discharge is 4-1/4″ from the bottom. This pump has a thermal cut off which prevents the pump from running dry and over heating.
Details:
- Volts:120/240
- Hz: 50/60
- Watts: 40
- Intake: 3/4″ barb
- Discharge: 3/4″ barb
- Model:E5
Compatible replacement for:
- 74416,
- 74427,
- 74415,
- 34378, 3
- 01392,
- 301392G,
- 301392E,
- 73491,
- A-05-280-502,
- LTI 7060,
- 10-0127,
- 10-0102-K,
- 70813,
- 73369,
- 73588,
- 72204,
- E5-DSHFDNNW,
- E5-NCHNNNNW3W
