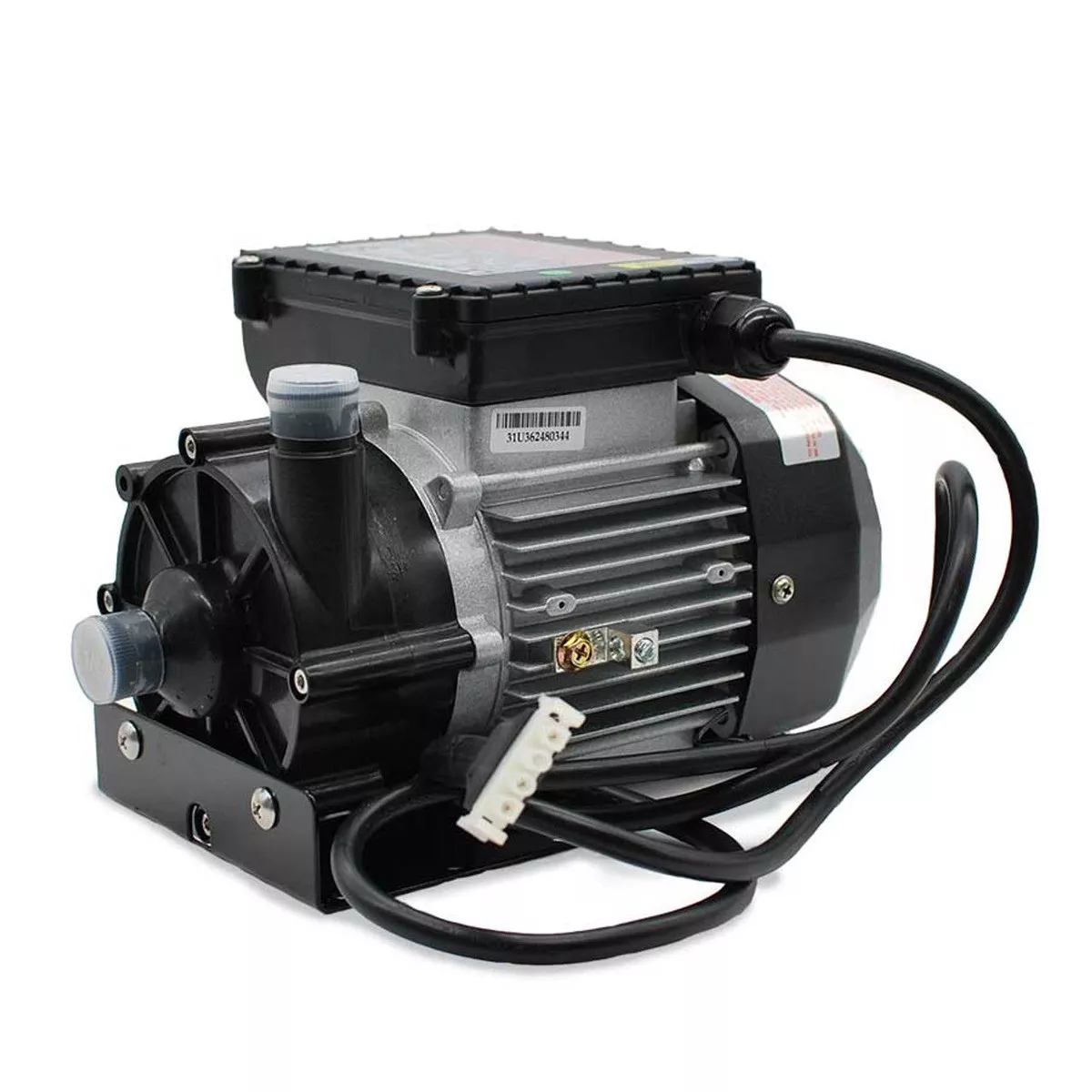

LX hot tub circulation pump running on 220 – 240 volts. This LX WE10 pump has the same wet end size and 3/4″ barb hose connections as the small Laing E10. Pump dimensions are 9-3/4″ long front to back, 5.9″ tall and 5.9″ wide. Space permitting in the hot tub it can be used to replace the smaller Laing Thermotech E10 pump.
Hose Connections
- 3/4″ intake and discharge (7/8″ OD).
- Slip on barb on intake hose connection
- Discharge can be rotated
Electrical Specs
- 0.8 Amps, 220 – 240 Volts
- 1 Speed 3450 RPMs,
- Electrical cord is included with AMP plug,
Discharge Position
- Ships with discharge at default vertical position,
- Discharge can be rotated to 4 different positions,
Compatible Replacement for:
- Laing Goulds E10 (Space Permitting)
Whats Included:
- 1 x LX WE10 Pump P/N (WE10-240)
- Pump has cord with AMP plug,
- 1 x Instruction manual,
Product Note:
- For use in hot tubs only,
- Sealed pump, not serviceable,
