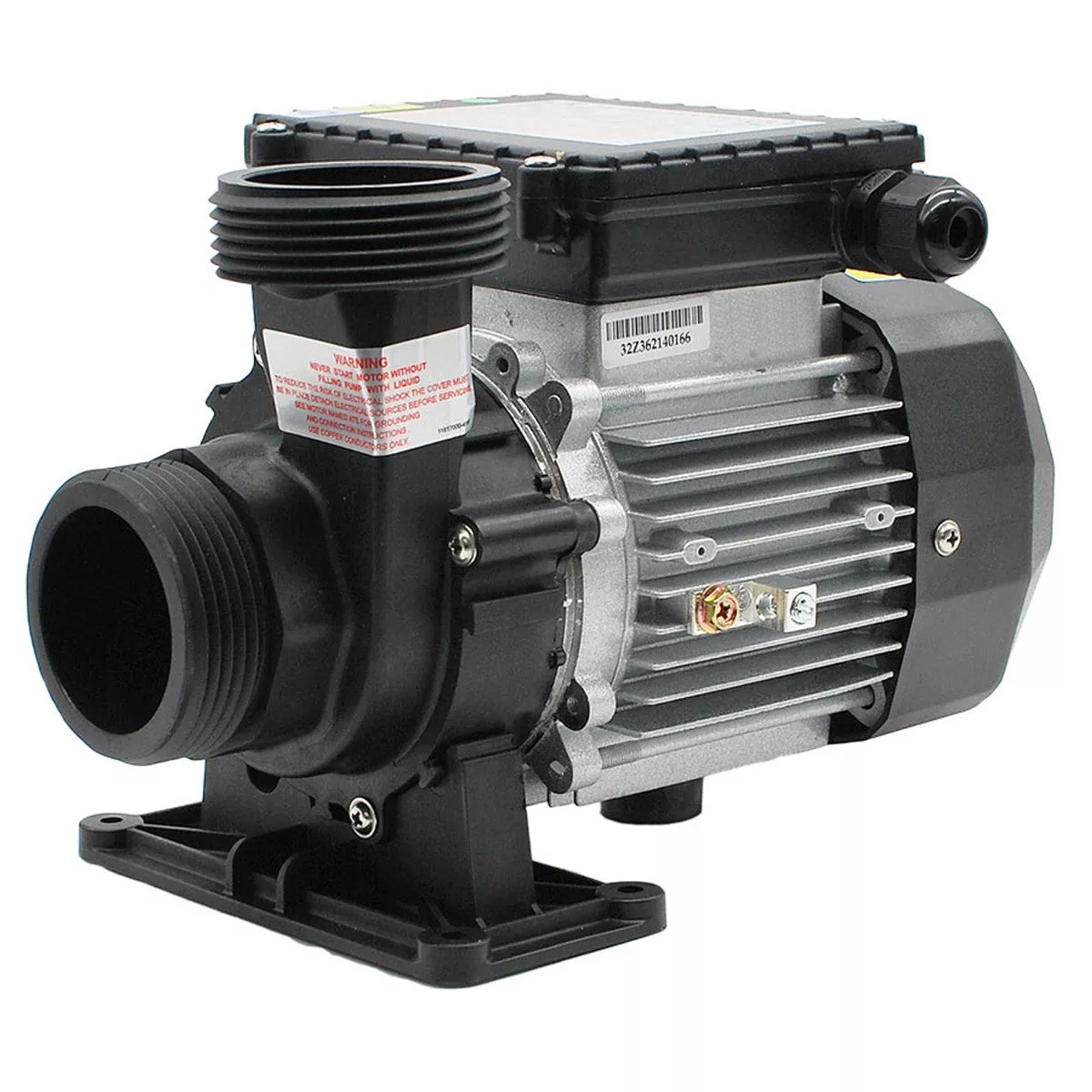

The LX WE14 hot tub circulation pump is designed to operate on 220-240 volts. This model has the same wet end size and union threads as the small magnetically driven Laing E14 Pump. The dimensions of the LX WE14 are 9-3/4″ long front to back, 6-1/2″ tall, and 6-1/2″ wide. When space allows, the LX WE14 can be used to replace the smaller Laing Thermotech E14 pump in the hot tub.
Discharge Threads
- 1-1/2″ intake and discharge (2-3/8″ OD).
- Includes Unions with o-rings
- Discharge can be rotated
Electrical Specs
- 1.3 Amps, 220 – 240 Volts
- 1 Speed 3450 RPMs,
- Electrical cord is not included,
Discharge Position
- Ships with discharge at default vertical position,
- Discharge can be rotated to 4 different positions,
Compatible Replacement for:
- Laing Goulds E14 (Space Permitting)
- Waterway Tiny Might (Space Permitting)
- BWG/Vico Ultima, Olympian
Whats Included:
- 1 x LX WE14 Pump P/N (10-WE14-240)
- 2 x Unions with o-rings,
- 1 x Instruction manual,
Product Note:
- For use in hot tubs only,
- Sealed pump, not serviceable,
