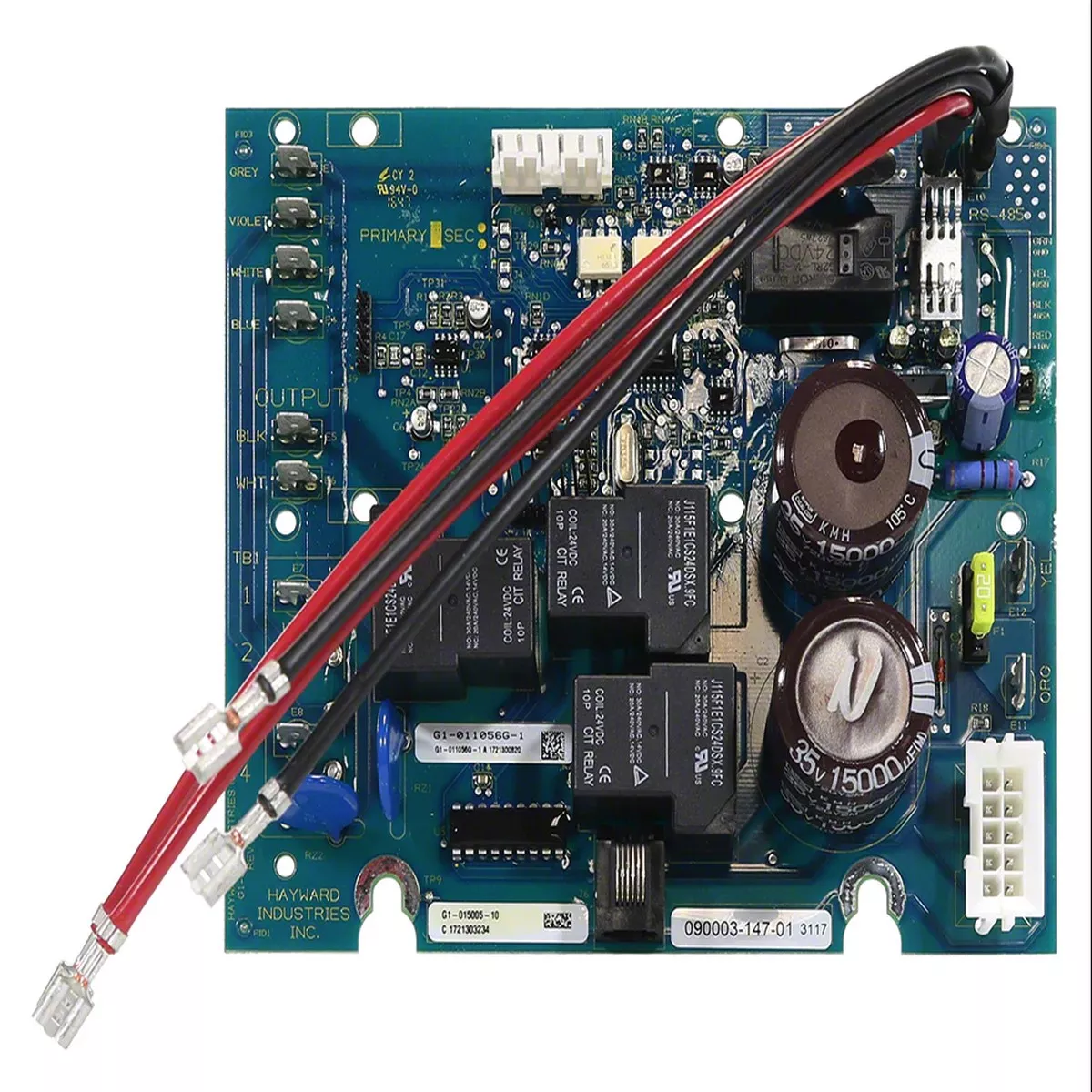

PCB-MAIN, AQTROLHP | GLX-PCB-TROL-HP
Hayward GLX-PCB-TROL-HP is the main control board for the AquaTrol HP Salt Chlorination System, designed for above-ground pools. It automates chlorine production and pump operation.
- Salt Chlorination:
- Dissolved salt (27003400 ppm) passes through the TurboCell, where the PCB sends power to produce chlorine through electrolysis.
- Chlorine sanitizes the pool and then converts it back to salt, repeating the cycle.
- Pump Control:
- Built-in timer controls pump run times, optimizing filtration and chlorination.
- Monitoring:
- The PCB tracks salt levels, water flow, and temperature, errors like Low Salt or No Flow for troubleshooting.
- User Interface:
- Adjust chlorine output levels (10%100%) and monitor system status via the control panel.
