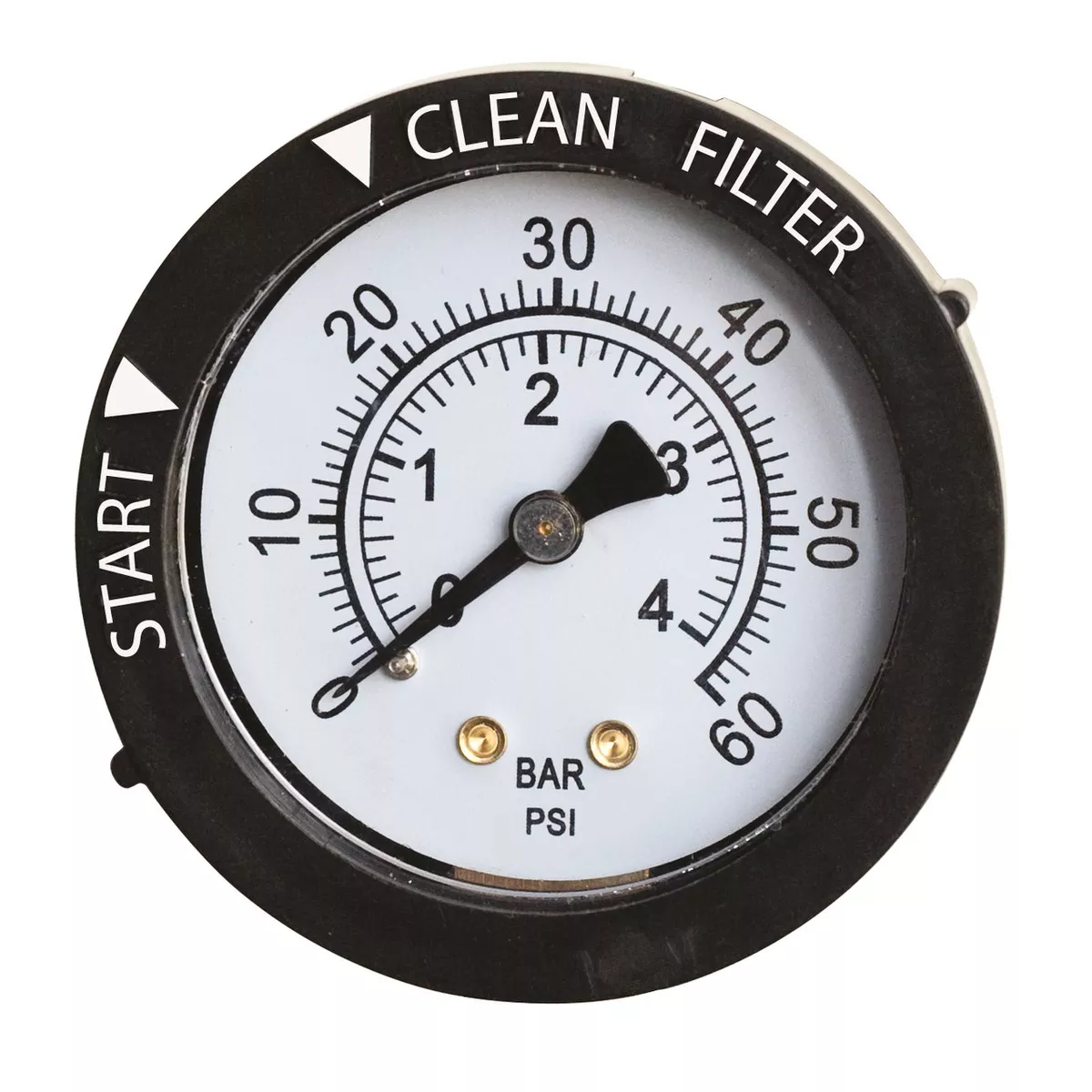

Universal Pressure Gauge For Filters Rear Mount
Universal Fit
Easy Install
Heavy Duty
Highly Accurate
Monitor your pool filter’s performance at a glance with this high-accuracy rear-mount gauge. It makes it easy to know exactly when your system needs backwashing or a filter cleaning to maintain crystal-clear water.
Why You’ll Love It
Reliable Monitoringaccurately tracks PSI to prevent system strain and pump damage.
Rear Mount Designperfect for multiport valves and filter tanks with back-facing ports.
Universal Threadsstandard 1/4″ NPT fitting works with almost every major filter brand.
Clear Displaylarge, high-contrast face allows for easy reading from several feet away.
Best For
Sand, DE, and Cartridge filters
Replacing broken or fogged-up gauges
Monitoring backwash requirements
Checking for plumbing obstructions
Quick Tips
Check your PSI weekly and record the baseline “clean” pressure after a fresh cleaning.
Use Teflon tape on the threads during installation to ensure a water-tight, leak-free seal.
Avoid over-tightening the gauge as this can crack the filter housing or the gauge stem.
Replace immediately if the needle does not return to zero when the pump is turned off.
Key Features
1/4″ NPT Connection
0-60 PSI Range
Brass Fitting
Weather-Resistant Case
Rear Center Mount
Fit & Compatibility
Fits1/4″ NPT Back Ports
Pool TypeIn-ground & Above-ground
MaterialHigh-Impact Plastic / Brass
Use WithSand, DE, or Cartridge Filters
Care & Storage
Rinse exterior with fresh water if exposed to chemicals.
Keep the lens clear of debris for easy reading.
Drain the gauge during winterization to prevent freezing.
Replace if the needle becomes stuck or the lens fogs.
PRO TIP
The “Rule of 10”: When your gauge reads 8-10 PSI higher than your clean baseline pressure, its time to backwash or clean your filter to maintain proper flow.
Always follow label directions and safety guidance. Keep pool chemicals and accessories stored safely and out of reach of children.
