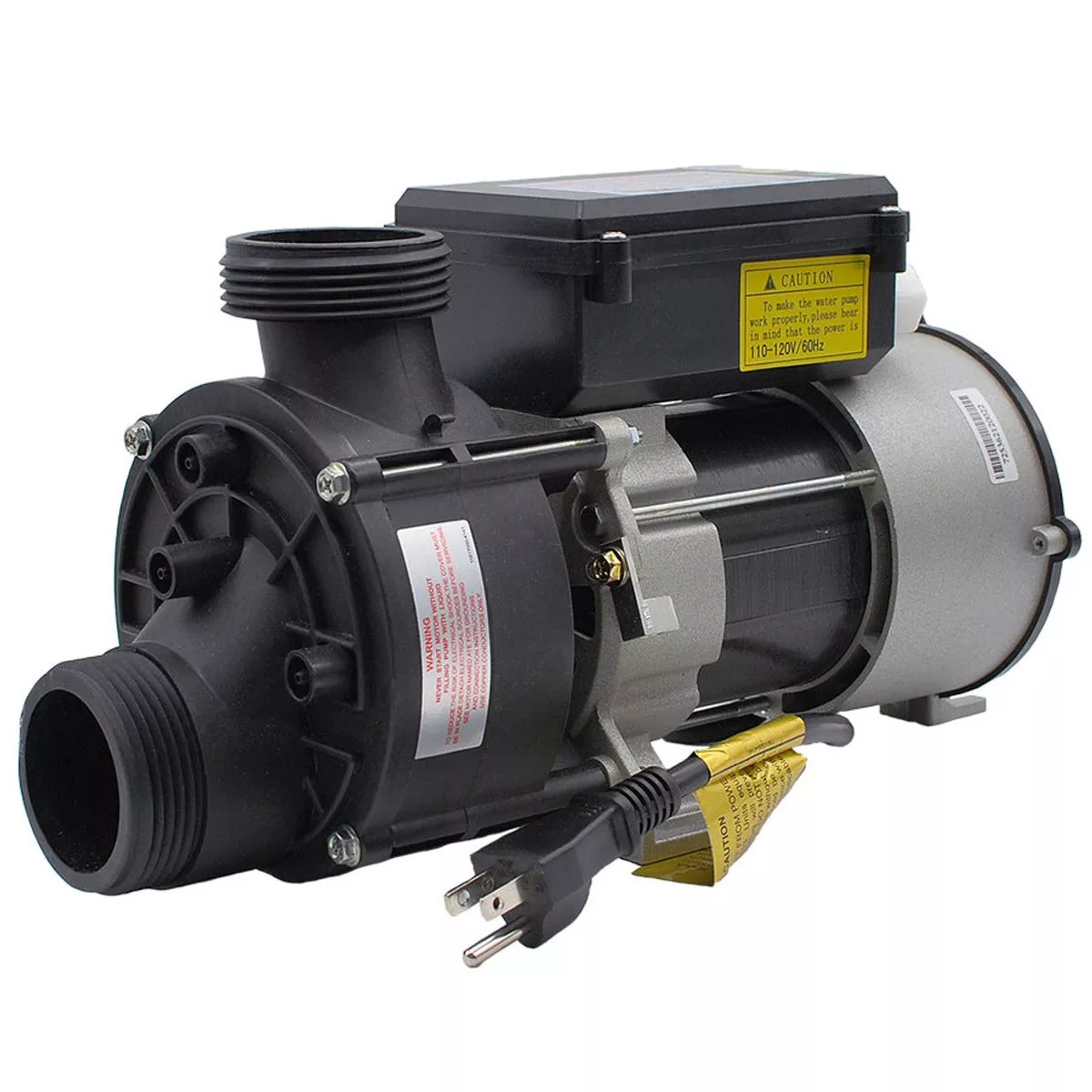

LX brand whirlpool bath pump with 1-1/2″ threads (2-3/8″ OD). Rated at 7 amps and 3/4 HP for 110 – 120 volts, includes 36″ cord with wall plug. This pump is turned on and off by the built in air switch and will require an air button. This button is typically mounted on the whirlpool bath tub surface to turn the pump on/off. It’s important to match the amp rating of the motor to your pump and not the HP.
Wet End Specs
- 1-1/2″ intake and discharge (Actual 2-3/8″ OD).
- Quick drain wet end for bath tub
- 90 GPM flow rate
- 2 x Unions with o-rings included.
Electrical Specs
- 7.0 Amps running at 3450 RPMs
- 1 speed turned on/off with air switch
- 110 – 120 Volts, 60 Hz
- Rated at 3/4HP
Controlled By Air Switch
- Has built in air switch to turn on/off
- Air button required to operate switch (Not included)
- Air switch hose connection circled in image
- No timer, switch is on/off only
Compatible Replacement for:
- Power Wow Bath pump
- LX WBH100
Whats Included:
- 1 x LX Pump P/N WCH100
- 2 x Unions with o-rings
- 36″ electrical cord with wall plug
Product Note:
- Optional air button sold separately
- For use in whirlpool bath only
